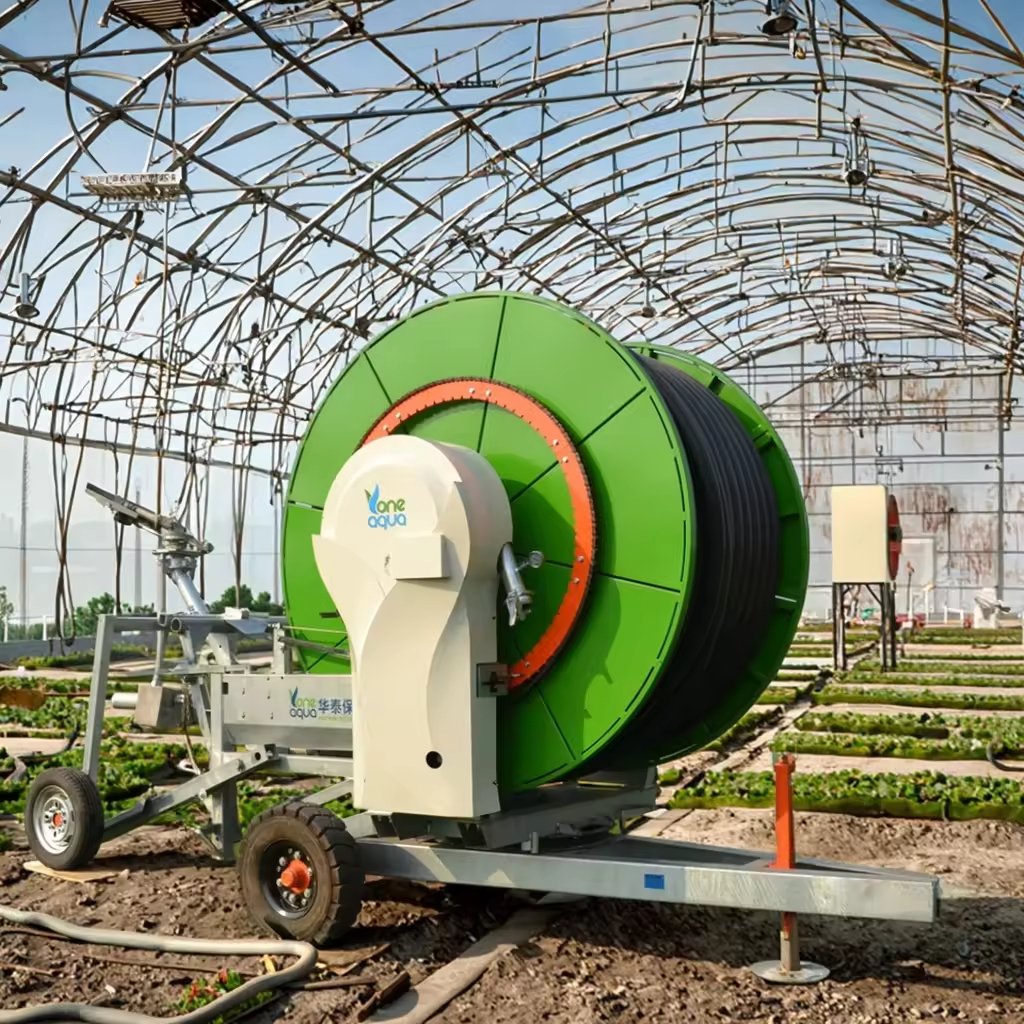

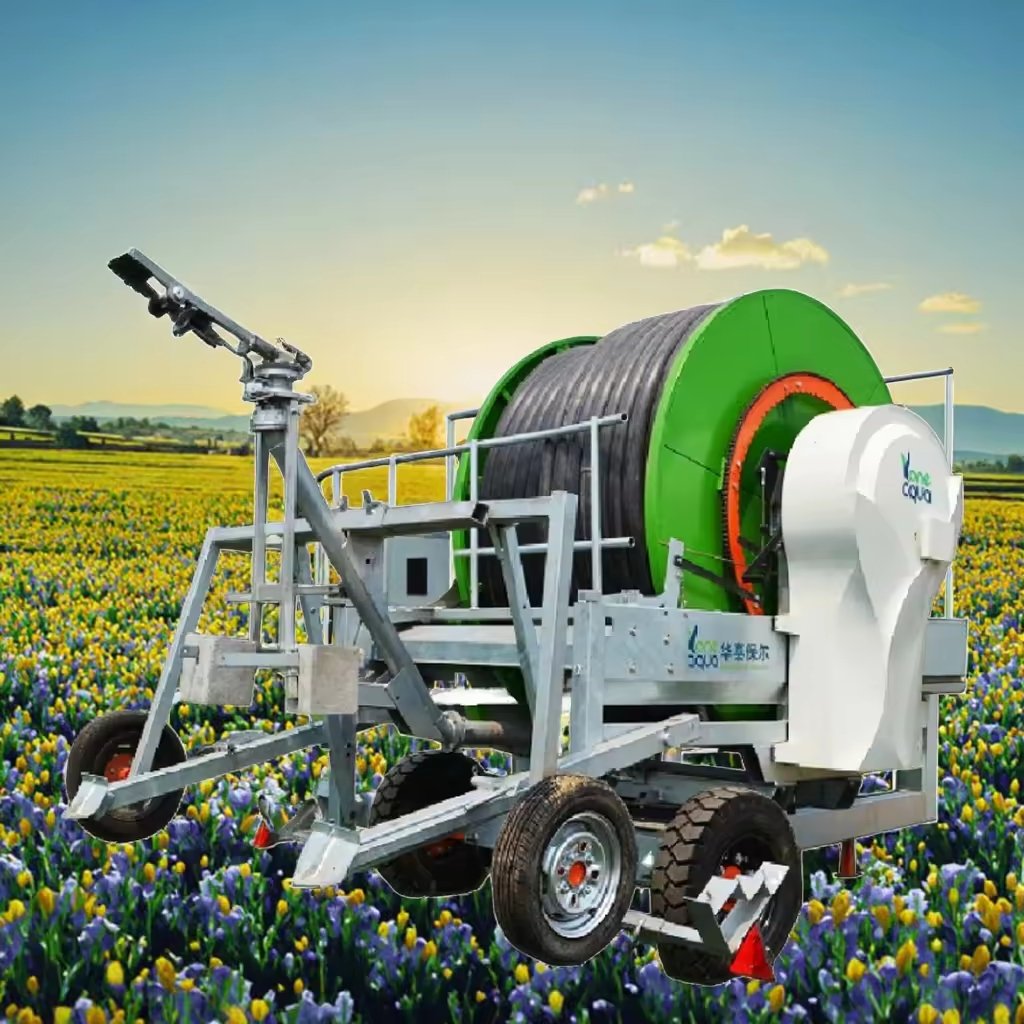

Aquajet II Series Hose Reel Irrigator
The New Generation: Intelligence & High Performance
Jointly developed with a century-old European enterprise to redefine precision and efficiency in mobile irrigation.
The Aquajet II Series represents a significant leap forward in irrigation technology. By optimizing the mechanical structure and integrating advanced intelligent control, this series delivers a 20% improvement in overall performance compared to previous generations. It is designed for modern agricultural operations that demand higher uniformity, energy savings, and a longer service life.
Optimized Performance: The combination of a new water turbine, gearbox, and mechanical structure results in a 20% overall efficiency gain.
Intelligent Control: Equipped with smart automatic control functions to ensure higher irrigation uniformity across the field.
Extended Durability: The entire machine is built for a service life of over 15 years, with the PE pipes designed to last over 10 years.
Versatile Speed Range: An optional four-speed high-torque gearbox provides double the output torque of older models, allowing a wide recovery speed range of 8–74 m/h.
Comprehensive Coverage: The series includes four models (65, 75, 85, and 90) covering single-machine areas from 200 to 400 acres.

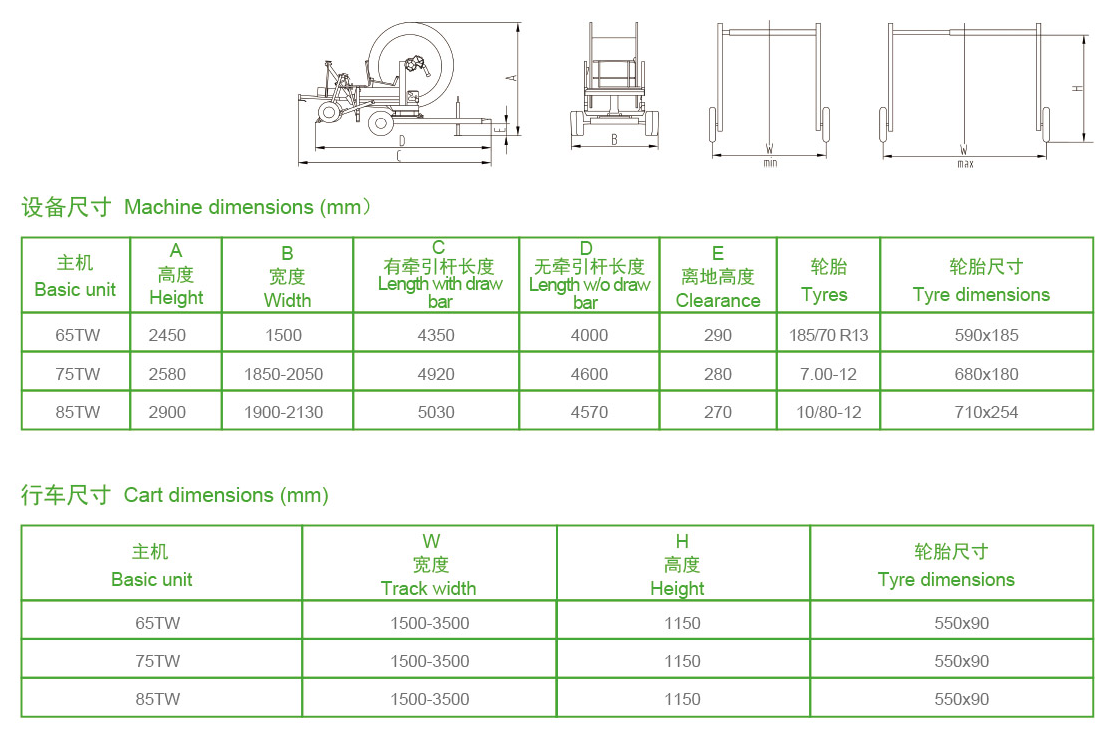

Equipment size

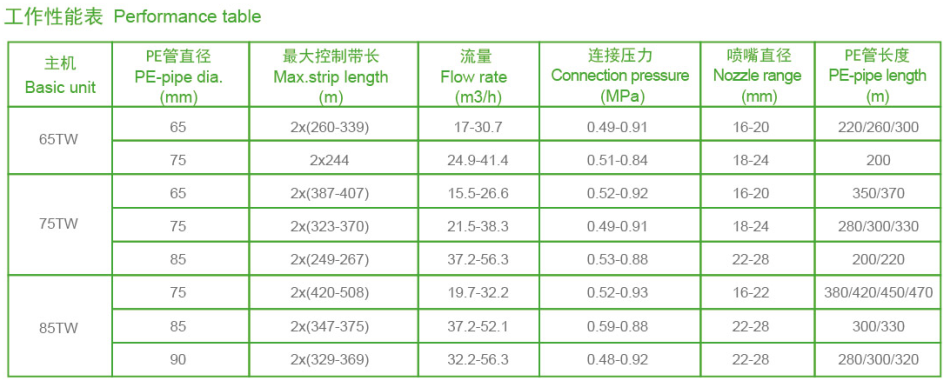

Performance

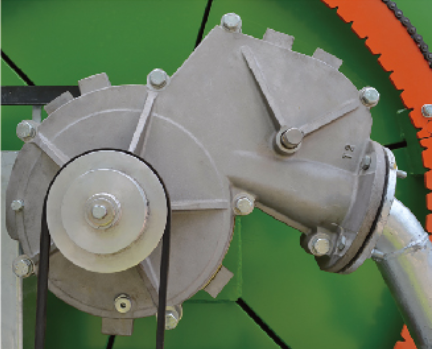

New TW20 High-Efficiency Turbine
This axial-flow turbine features unusually low pressure loss, reducing input pressure requirements by 0.5–1.0 Bar and shortening irrigation time by 10%–15%.

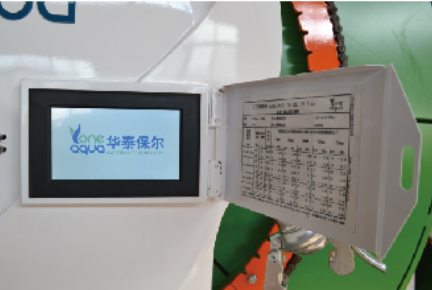

Digital LCD Human-Machine Interface
Features a 7-inch high-brightness LCD screen that makes operating status clear at a glance. Users can input the desired irrigation amount to automatically calculate recovery speed and input pressure.
Precision Speed Regulation
A stepper motor continuously corrects the recovery speed based on real-time monitoring, maintaining an accuracy of $\pm$ 1m/h.
Sustainable Power Management
Integrated lithium batteries provide 30 hours of power, supplemented by dual-sided solar panels for long-term continuous operation.
Smart Connectivity
An optional SMS prompt module sends device status updates and can automatically stop the water pump when irrigation is finished or if a malfunction occurs.
Twin Large Spray Guns: Equipped with KOMET Twin SR101/140 guns for fully automatic, stable rotary spraying with distances reaching 35–50 meters.

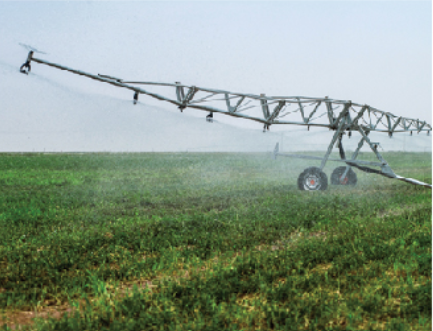

Cantilever Truss Option: For delicate crops, a 26m truss provides gentle, low-pressure irrigation across a 34m width without damaging the soil or plants.

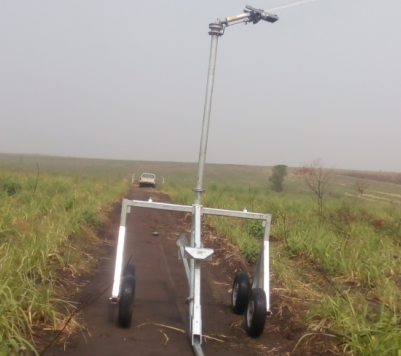

High-Stem Adaptability: The four-wheel sprinkler crane features adjustable heights, making it perfectly suited for high-stem crops like sugarcane and corn.
Automatic Alignment: A balance mechanism ensures the correct irrigation angle even on uneven surfaces to protect the crops.

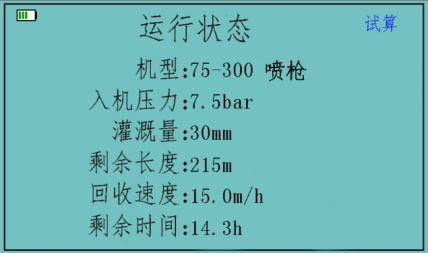

human-computer interaction
The LCD screen can display the recycling speed, input pressure, irrigation amount, remaining recycling length, and time.◎ Calculation function: can input irrigation amount to calculate the recycling speed, display the recycling time, recommend the recycling gear of the sprinkler crane, etc.Real time monitoring of recycling speed and automatic adjustment of speed deviation through stepper motor.

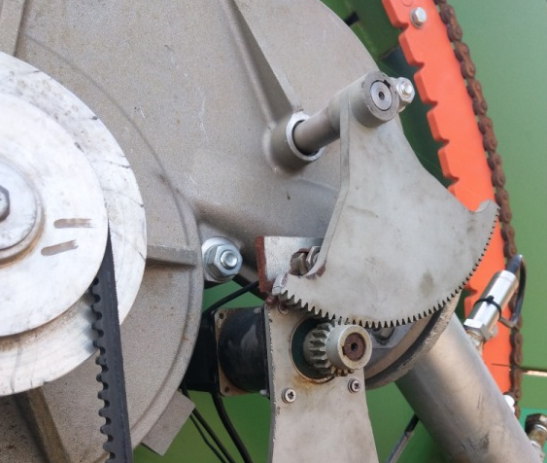

Uniform recycling
Speed regulation is achieved by controlling the water intake of the water turbine through a stepper motor, which is compared with the actual speed monitored and continuously corrected, with an error of only ± 1m/h.

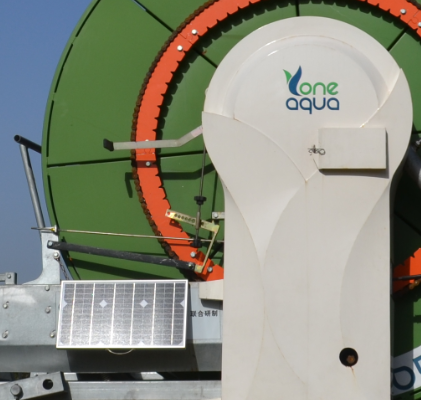

Solar charging
The device is equipped with lithium batteries to ensure a 30 hour power supply. At the same time, solar panels are installed on both sides of the body to charge the lithium batteries, ensuring long-term continuous operation of the device.
We're here to help you grow.
The Aquajet II series is engineered to adapt to a diverse range of agricultural environments and plant types:
High-Stem Crops: The adjustable sprinkler crane height makes it ideal for irrigating crops like Sugarcane and Corn.
Delicate Horticulture: The cantilever type provides low-pressure irrigation with excellent atomization, protecting sensitive crops and maintaining soil structure.
Staple Cereal & Root Crops: Suitable for a wide variety of high and low-stem crops that require precise, uniform water application throughout the growing season.
Irregular Landscapes: Its mobile design is perfect for field layouts where fixed systems cannot be installed, ensuring full coverage on uneven surfaces.
