Aqualine Linear Sprinkler

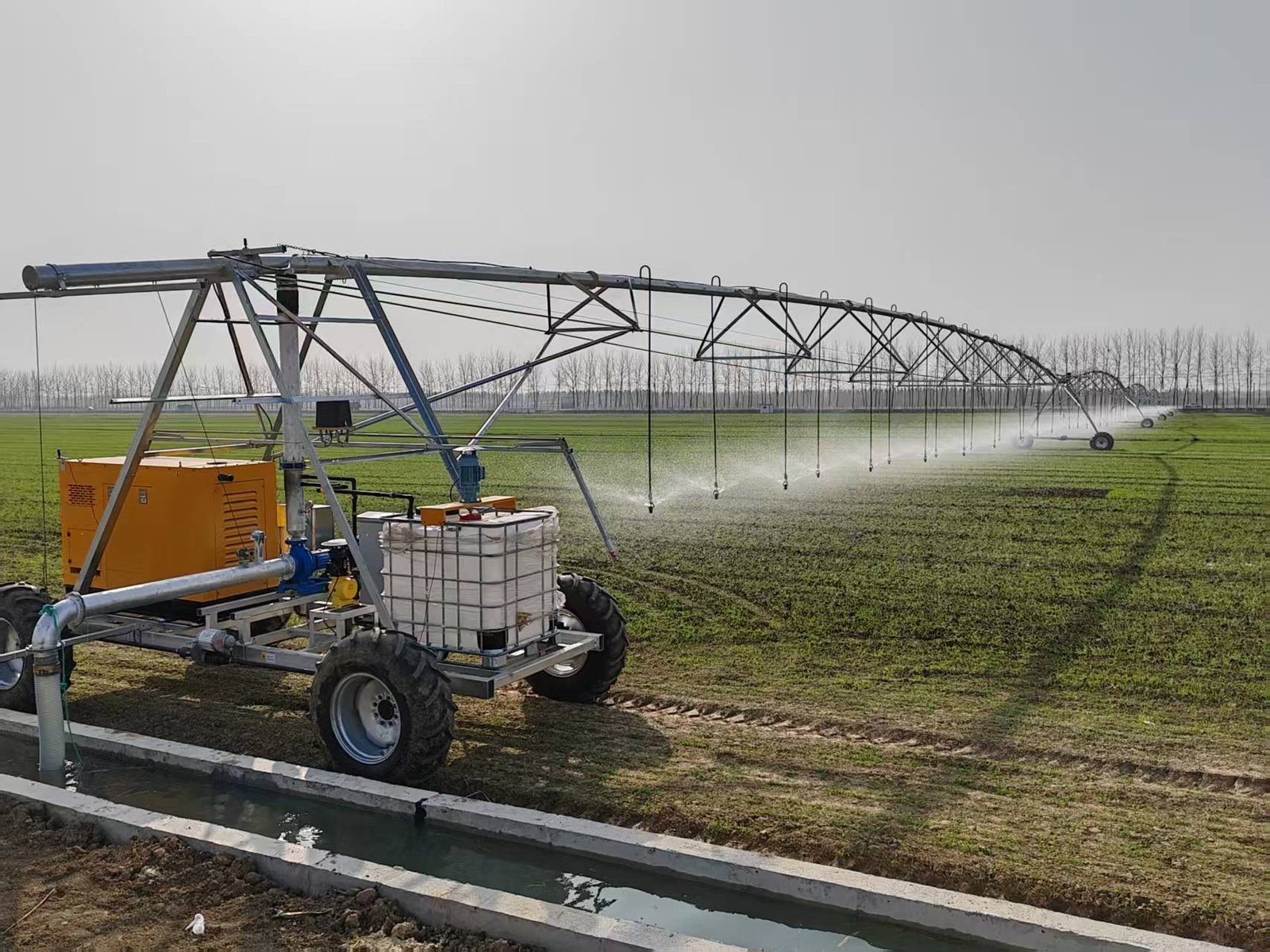

The Aqualine Series linear sprinkler systems are cutting-edge machines developed specifically for large rectangular or square plots. Unlike pivot systems that rotate around a fixed center, the Aqualine moves in a straight line back and forth, perfectly covering every corner of the field to eliminate irrigation gaps. Combining Austrian BAUER’s structural engineering with high-precision guidance technology, this system maximizes land utilization while ensuring extreme water distribution uniformity.
Best for: rectangular fields
Irrigation width: up to 400 m
Coverage: near 100% field area
Value: optional rotation at one end
- Maximum span of 24 spans (double-arm), 800m
- Maximum irrigated area: 210ha (approximately 3200 mu)
- Maximum flow rate: ＞700m³/h
- Even irrigation, no dead spots
- Also suitable for fertilization and pesticide spraying
Water supply mode

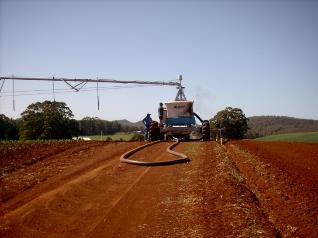

* Hydrant water supply: the hydrant spacing is generally 50m. It is necessary to stop the machine and replace the water towing hose.

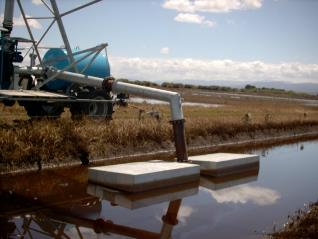

* Canal water supply: install the centrifugal pump on the main drive tower. A filter valve is installed at the water inlet.
Power supply mode
* Power supply pile: the space between two piles is generally 100m. It is necessary to stop machine and replace the towing cable.
* Diesel generators: installation of diesel generator sets to the main drive tower, the generator power is set according to standby power option.
Precision control system
The precise control system is installed between the trusses, and the transmission arm is enlarged, so that the transmission precision of the equipment is higher and more reliable. It is only used in the pivot irrigators with more than 9 spans.
alignment system
The alignment system is mounted on the swing support between the main tower support and the swivel elbow. The inlet multi-position switch is mounted under the swing support. During the operation of Liner irrigators, the axis of the straddle is always kept 90°to the operating direction of the main drive tower.
Poly Pivot
Span pipe is lined with PE100 HDPE pipe, which can improve the anti-corrosion performance of special water quality and integrated application of water and fertilizer, and provide anti-corrosion solutions for the whole machine.
Remote control system

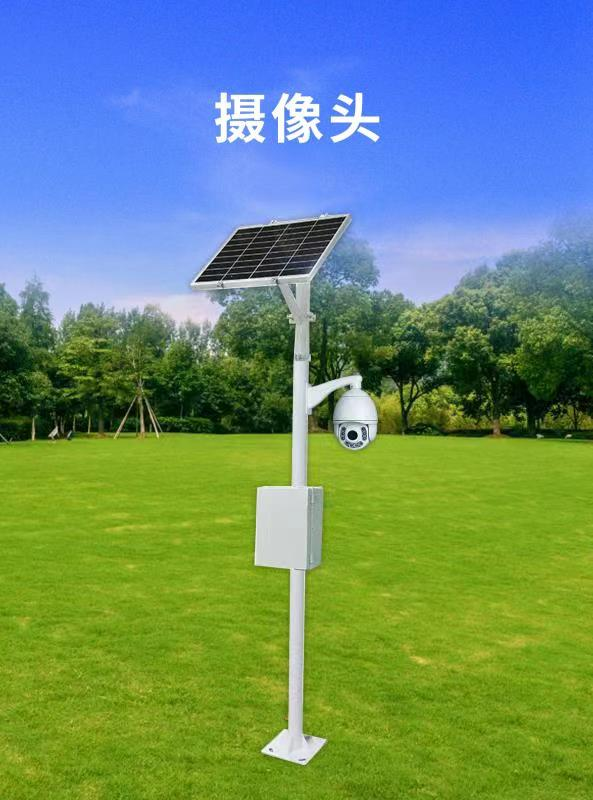

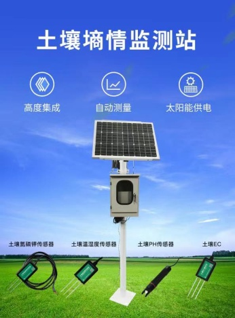

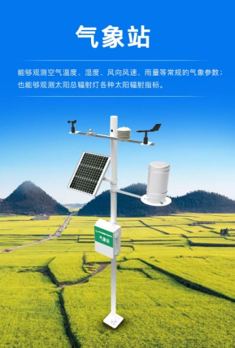

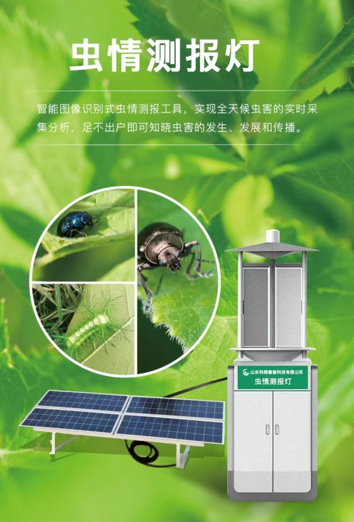

During the use of large-scale sprinkler irrigation equipment, we can also provide soil moisture monitoring, pest and disease detection, and meteorological information monitoring.

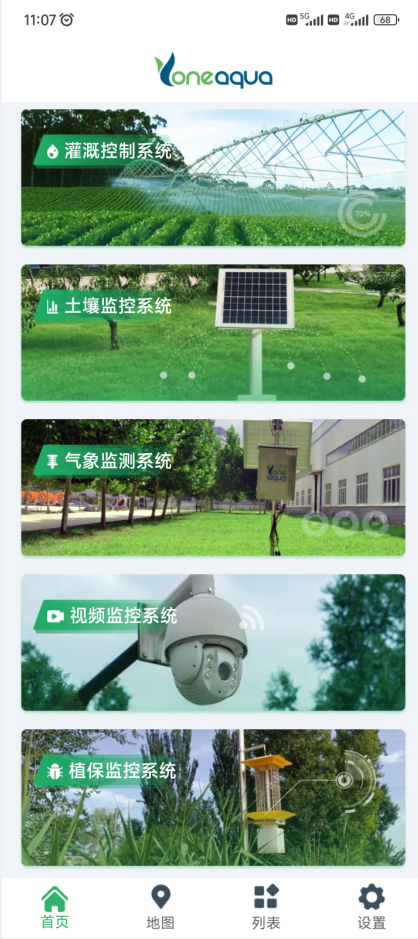

Start/stop, forward/reverse rotation, speed adjustment, position detection, angle detection, water pressure detection, voltage detection, current detection, water volume detection, fault alarm, running time, operation log, integrated water and fertilizer system, GPS positioning.
Due to the special nature of the water and electricity facilities for the translation machine, remote control functionality is more suitable for a combination of generator and water pump in the irrigation canal.
Application
We're here to help you grow.
The Aqualine series is the premier choice for:
Commercial Grain Bases: Large-scale, regular fields of wheat, corn, soybeans, and other staple cereals.
High-Value Cash Crops: Crops requiring extreme uniformity in water distribution, such as cotton, potatoes, and sugar beets.
Large-Scale Pastures: Ensuring rapid regrowth and high-quality forage for livestock operations.
Rectangular Field Layouts: Any rectangular land where a pivot system would leave the four corners unirrigated.
Optional functions

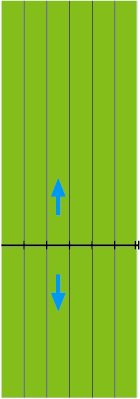

Linear

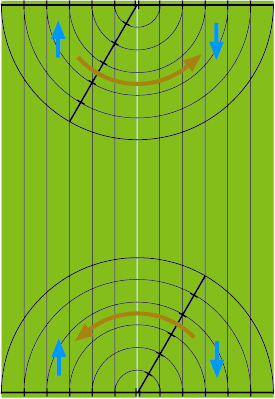

Centerliner（double irrigation area）
Learn more about our products
Pivot irrigator | Centerliner and Linear irrigator | Hose reel irrigator | |
Applicable field | Large areas of farm and grassland | Medium-sized Strip and regular plot | Small-sized Strip and regular plot |
Length of System (m) | 120–740 | 120–1240 | 90–450 (PE Pipe) |
Irrigation area(ha) | 4.5–170 | 18-180 | 2.5—26 |
Flow(m3/h) | 20–450 | 50–600 | 3.3–65 |
Advantage | Good automation & Remote control Good Fertigation | Uniform Irrigation; spray fertilizer, pesticide | Flexible moving Easy to transfer in operations |
Disadvantage | Circular sprinkler Round irrigation Lack of corner coverage | Pre-constructions in large; Investment is larger | Work lanes shall be reserved |

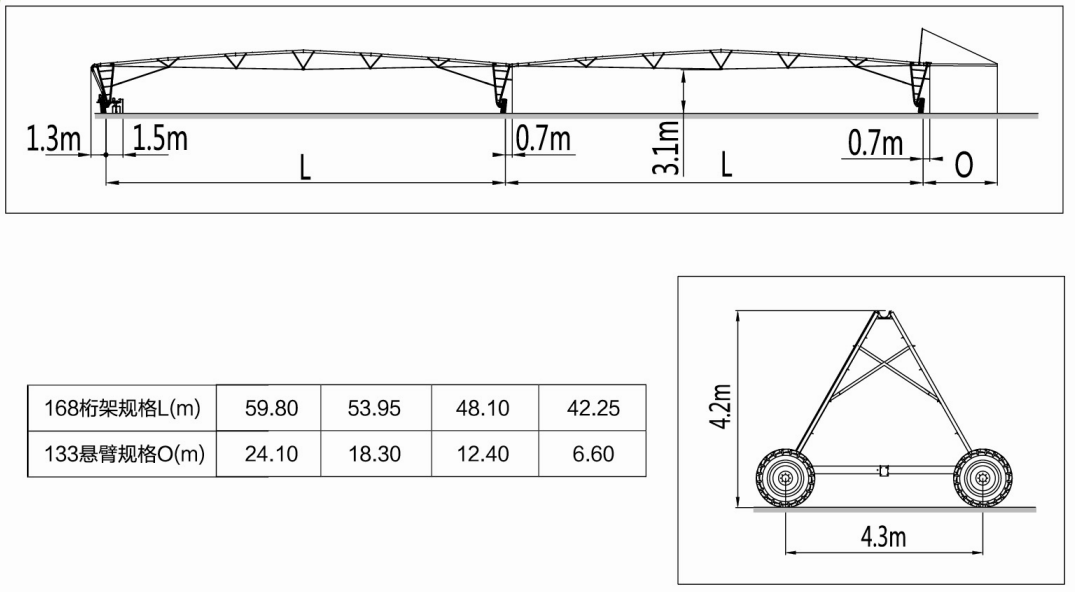

Equipment size
Four-corner control system A sprinkler can be hung on the end of overhang, adding irrigation area of corners
Key benefits
- Travels along field length; system length designed to match
field width
- Near-full field coverage; minimal blind area compared with
pivot
- Irrigation width up to 400 m (configuration dependent)
Guidance & safety (typical)
- Channel guidance for straight, reliable operation
- Fixed-point stop + edge safety stop
- Span alignment control for smooth translation
- Optional end rotation to increase coverage and
reduce investment
Linear
Centerliner（double irrigation area）
pivot tower
The pivot is supported by four 80mmx80mm solid angel steel legs which are connected by cross bars to ensure structural strength and stability of the system. The whole pivot support frame is hot dip galvanized and double lip seal to prevent leaking.
Drive towers-wheel base
Drive tower bracing angle 100*75 for high torsion resistance;L . arge-dimension wheel base drive tower heights for optimum adjustment to different crops; wheel base brackets with bracing; Highly stable stand thanks to extremely wide wheel base; permissible slope: up to 15% .
Choose the appropriate main drive tower type based on the equipment length, flow rate, and water and electricity supply: simple two-wheel, standard four-wheel, standard large four-wheel, reversible four-wheel, double-arm four-wheel, double-arm large four-wheel, etc.
Types of Guiding Mechanisms
Angle iron guidance uses angle iron instead of guide furrows. This method is expensive but easy to maintain.
* Wire rope guidance uses wire rope instead of guide furrows. This method is expensive, but less expensive than angle iron guidance and easier to maintain.
Gear motors
High-torque motor with thermal overload protection Enclosed moisture-proof motor High-efficiency spur gear shaft seal with specific dirt-repellent profile Types: 40:1/(0 . 55kw; 0 . 75kw; 0 . 9kw; 1 . 1kw)
spans-Trussing
High-torque motor with thermal overload protection Enclosed moisture-proof motor High-efficiency spur gear shaft seal with specific dirt-repellent profile Types: 40:1/(0 . 55kw; 0 . 75kw; 0 . 9kw; 1 . 1kw)
Sprinkler
Even arc shape of the trussing ensures high degree of stability. Main tube of 4 diameters can meet need of a wide flow rate range (50-500cum/h) and optimizes the operating cost. standard tube length (5 . 85m) facilitates transportation and assembly. unified truss rod design makes it adaptable for all models of machines and the high tensile truss rod (diameter 20mm) ensures a higher safety guarantee for the whole system.
Tire
Austrian KOMET wide-range sprinklers is used for large machines, and Italian SIME sprinklers is used for medium and small reel machines.
Austrian KOMET-KPT rotary sprinkler is standard, and American NELSON-D3000 and R3000 sprinklers are optional.
Electrical components
Preferred suppliers, strict testing, tires with different grip performance can be selected according to special soil quality.
Truss connection
Schneide, Phoenix, OMRON and other products are adopted for the main electrical components, and the system is precisely controlled. Honeywell electrical devices are used. High-quality electrical components ensure reliable operation of the equipment for a long time.
Sprinkler connection hose
Independent universal joint, including ball joint and ball socket, flexible connection The connecting rubber hose between spans is made of high-quality rubber, specially customized, with anti-aging and anti-corrosion performance, pressure resistance greater than 0.6MPa, bursting pressure greater than 1.8MPa, and outdoor operating temperature of -40 ℃ ~ + 50 ℃.
Spray Nozzles
Preferred suppliers, strict testing, tires with different grip performance can be selected according to special soil quality.
Main cable of Pivot & Linear(Large-scale irrigators)
Standard configuration: Austrian KOMET-KPT rotary spray nozzles; optional: American NELSON-D3000 and R3000 spray nozzles
Steel
Five sizes of 10-core main cables for equipment of different lengths and power. Adopt cross-linked polyethylene insulation polyethylene sheath, anti-aging, anti-ultraviolet, wear-resistant. Operating temperature: -20 ℃ ~ + 55 ℃, storage temperature: -50 ℃ ~ + 70 ℃
