Water and fertilizer integrated fertilization system
Precision Nutrition for Every Crop
H.T-BAUER’s Water and Fertilizer Integrated System (Fertigation) represents the pinnacle of modern nutrient management. By delivering dissolved fertilizers directly through the irrigation pipeline, our systems ensure that crops receive the exact nutrients they need at the optimal time, significantly improving absorption rates and reducing waste.
System Solutions by Equipment Type

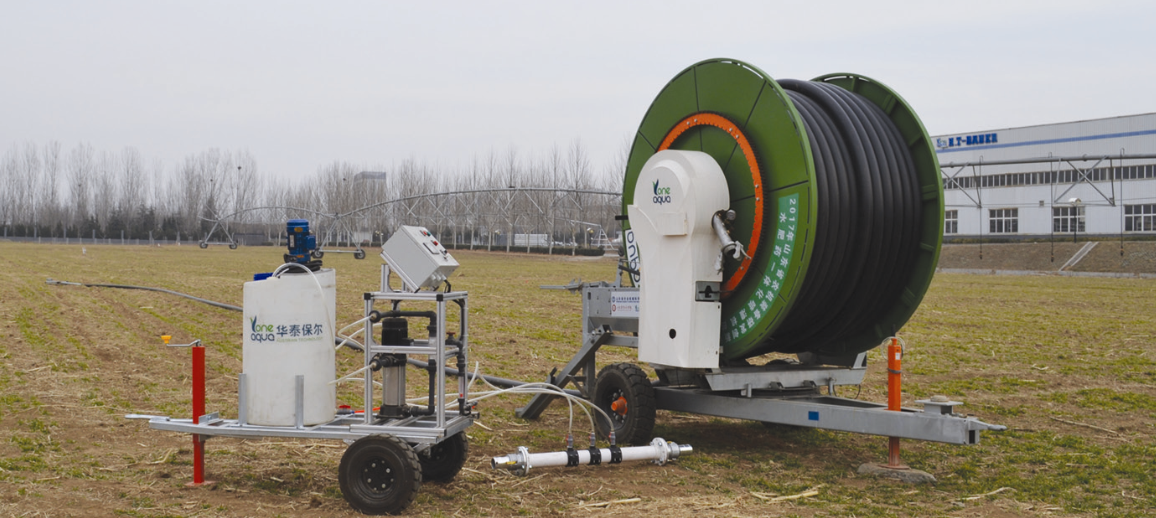

Reel Machine Fertilization System
A highly mobile and reliable solution specifically tailored for use with hose reel irrigators.
Mobile Efficiency: Equipped with a dedicated towing car, allowing the fertilization unit to move between project locations alongside the sprinkler.
High Performance: Features a 200L fertilization bucket and a 1.5Kw fertilizer pump capable of an outlet pressure of 0.81MPa.
Smart Control: Utilizes a 4.3-inch touch LCD screen for intuitive visualization and easy operation.
Customizable: The fertilizer pump model and flow rate (up to 2m³/h) can be adjusted to meet specific user requirements.
Electric Circular Sprinkler System (SF50)
Designed for large-scale fixed irrigation, this system ensures continuous, high-capacity nutrient delivery.
Dual-Tank Advantage: Features two 1500L fertilization tanks with independent mixers, allowing for interchangeable use without stopping the irrigation process.
Precision Dosing: Includes a high-capacity diaphragm metering pump with a flow rate of 650L/h.
Advanced Automation: A 7-inch LCD touch screen offers a superior human-computer interface, supporting both manual and automatic working modes.
Intelligent Linkage: Built-in trial and error functions calculate the required sprinkler running speed based on your target fertilizer amount.
The "Fertilizer Expert" Control Technology
For high-end operations, our Fertilizer Expert system provides laboratory-grade control over the fertigation process.
EC & pH Management: Automatically adjusts water quality by monitoring and correcting Electrical Conductivity (EC) and pH levels in real-time.
Multi-Channel Injection: Access up to 6 fertilizer injection channels simultaneously, each operating independently for complex nutrient recipes.
Smart Learning: The system records correction factors and uses them as data for future programs, ensuring the system reaches set values rapidly.
Dual Mode Operation: Can function autonomously or as an integrated interface controlled by the Dream Controller.
