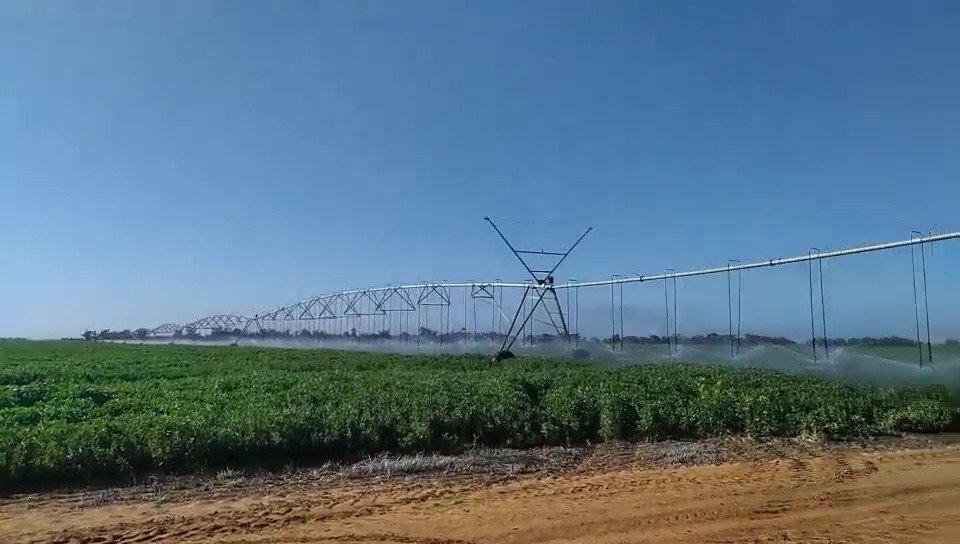

Aquaspin Pivot Irrigation Systems
The Aquaspin series represents the pinnacle of large-scale irrigation technology. Engineered with the rigorous scientific standards of Austria’s BAUER and optimized for diverse global terrains, the Aquaspin system provides fully automated, circular irrigation covering massive areas with unmatched uniformity. Whether you are managing hundreds of hectares of cereals or specialty crops, the Aquaspin ensures consistent growth while drastically reducing labor and energy costs.
Best for: large farms
Circle diameter: up to 1800 m
Slope capability: up to 15%
Value: durable structure; easy operation

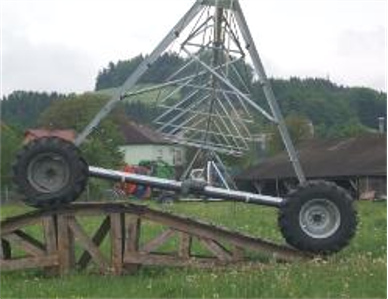

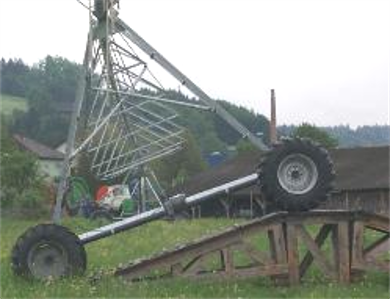

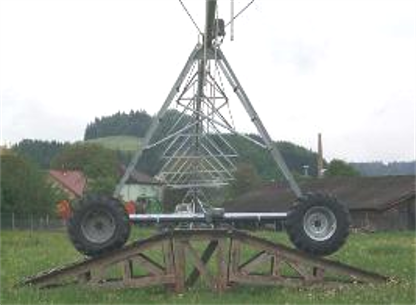

climbing ability
Length of a main pipe is 5.84m, with each span linked to 7-10pcs main pipes Diameter(mm): 219、203、168、133, Orderable combination Up to 12 spans(Chinese manufacturers generally do not exceed 8 spans) Stable structure, strong wind resistance Superior terrain adaptability

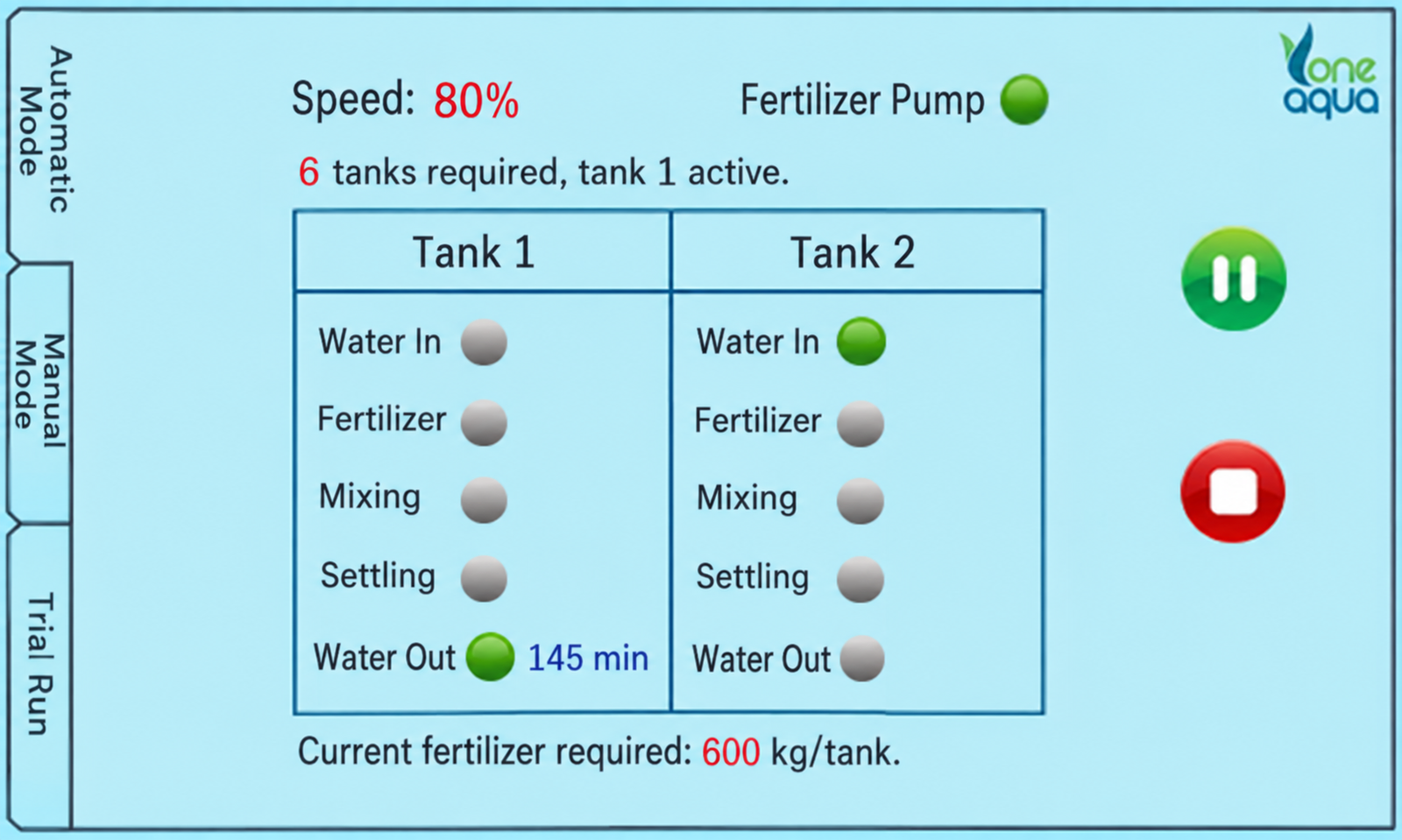

Fertigation
* Equipped with two 1000L tanks, both with mixers (0.75KW) used alternately, without waiting for shutdown, to improve the efficiency of fertilization.

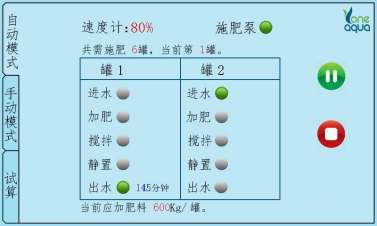

* 7-inch LCD screen for good human- computer with good interaction experience. * Select high-quality diaphragm metering pump (650L/H, 1.1KW, 0.6MPa).
* Unique trial calculation linkage function, input the amount of fertilizer to calculate the running speed of the sprinkler irrigation equipment, and automatically control the operation of the sprinkler irrigation machine.
* Manual and automatic operation modes.
A sprinkler can be hung on the end of overhang, adding irrigation area of corners
Four-corner control system
5-span for example. Irrigation area can be increased by 10 percent

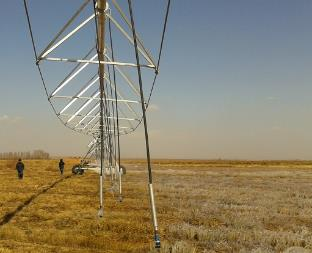

electrical parts & rubber pipe
Ensure the equipment to work under the bad conditions
Poly Pivot
Span pipe is lined with PE100 HDPE pipe, which can improve the anti-corrosion performance of special water quality and integrated application of water and fertilizer, and provide anti-corrosion solutions for the whole machine.

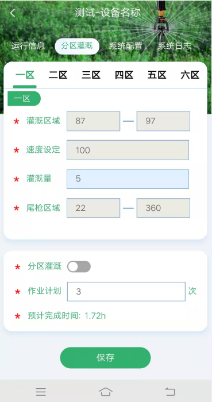

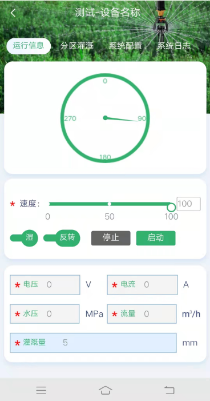

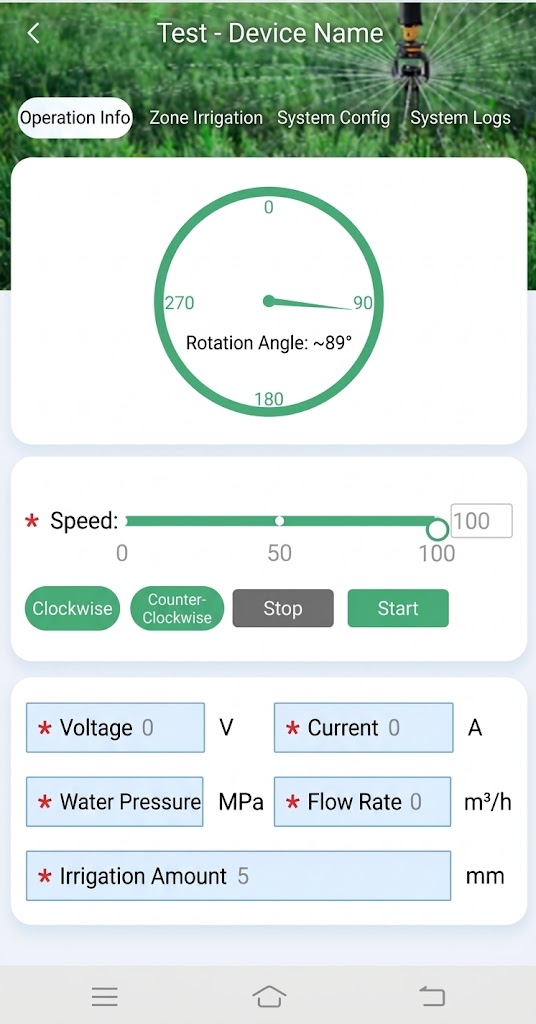

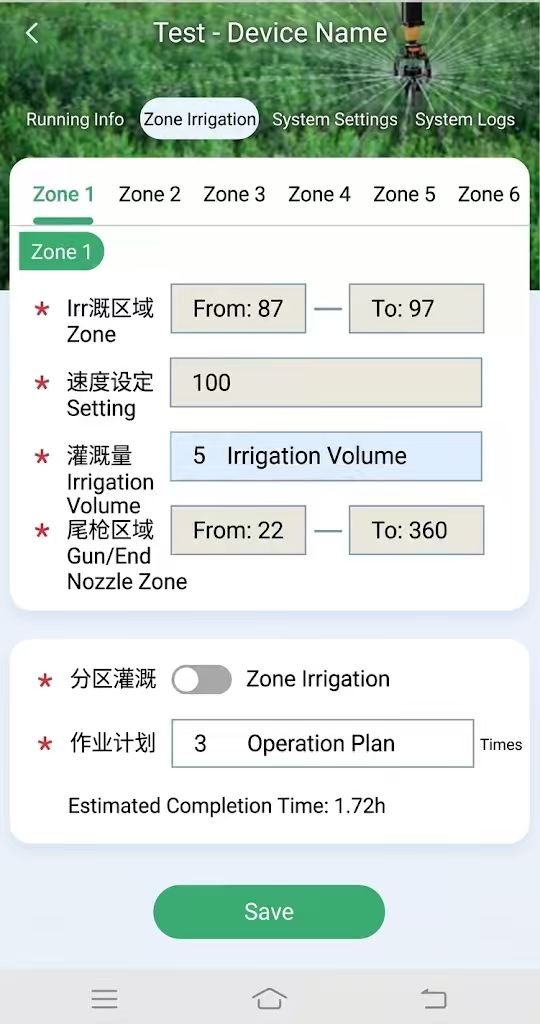

Remote control system
Start-stop, forward and reverse rotation, speed adjustment. Tail gun control, water pump linkage, zonal irrigation, position detection, angle detection, water pressure detection, voltage detection, current detection, water quantity detection, fault alarm, running time, operation log, water and fertilizer integration, GPS positioning. Soil moisture, weather station, etc.
Application of Photovoltaic Irrigation
In areas with good sunshine conditions and abundant surface water resources, the more irrigation rounds of crops, the more economic value of photovoltaic irrigation can be reflected.
Resolving irrigation needs in power-deficient areas
One investment, enjoy 25 years of return, with an average annual investment of only $35-58 per ha.
We're here to help you grow.
Broadacre Crops: Ideal for wheat, corn, soybeans, and other staple cereals.
High-Stem Crops: Features adjustable heights and specialized spans to accommodate tall crops like sugarcane.
Pasture & Forage: Provides efficient water distribution for large-scale livestock grazing lands.
Arid Regions: High-efficiency water delivery makes it perfect for desert reclamation and water-scarce environments.
Provide overall design according to requirements, including:
Equipment composition of irrigation machines
Match the appropriate water supply system.
Design and Cost Estimation of Photovoltaic Irrigation System.
Provide details according to the local diesel price or electricity price.
Detailed economic comparison scheme.
Optional functions

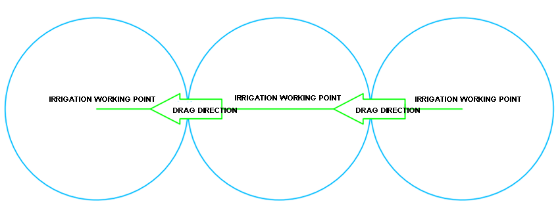

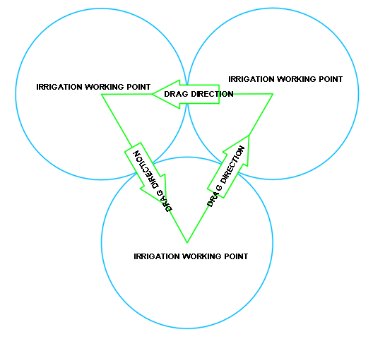

Mobile Pivot
The shared pivot can be dragged between adjacent plots. Towing speed up to 40 km/h The maximum length should not exceed 6 spans.
Learn more about our products

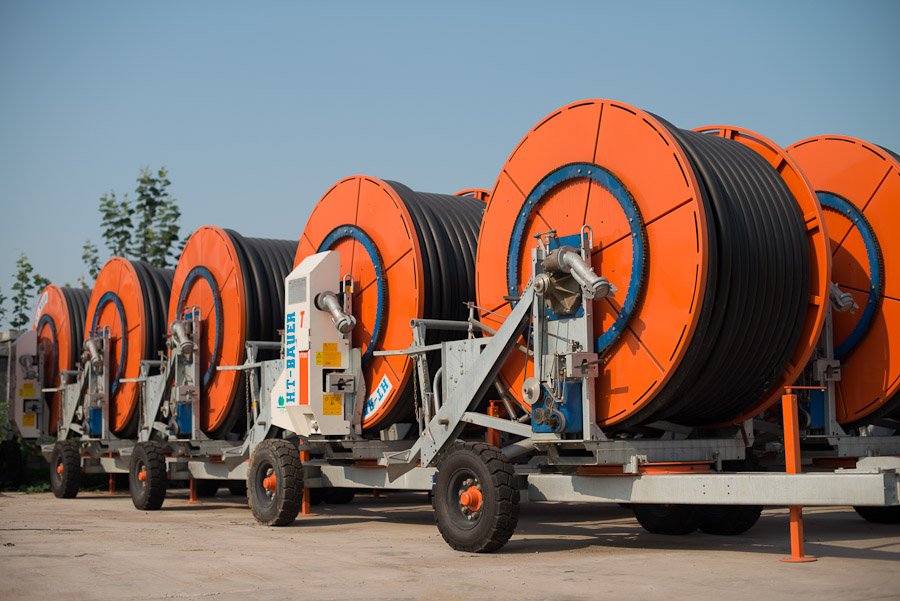

Pivot irrigator | Centerliner and Linear irrigator | Hose reel irrigator | |
Applicable field | Large areas of farm and grassland | Medium-sized Strip and regular plot | Small-sized Strip and regular plot |
Length of System (m) | 120–740 | 120–1240 | 90–450 (PE Pipe) |
Irrigation area(ha) | 4.5–170 | 18-180 | 2.5—26 |
Flow(m3/h) | 20–450 | 50–600 | 3.3–65 |
Advantage | Good automation & Remote control Good Fertigation | Uniform Irrigation; spray fertilizer, pesticide | Flexible moving Easy to transfer in operations |
Disadvantage | Circular sprinkler Round irrigation Lack of corner coverage | Pre-constructions in large; Investment is larger | Work lanes shall be reserved |

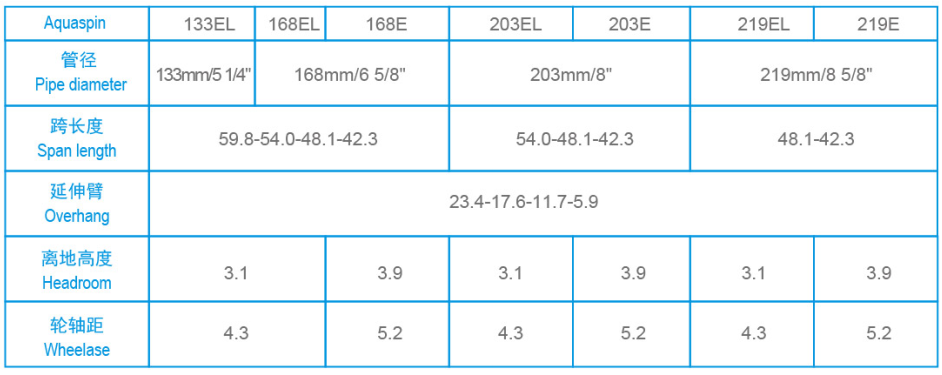

Technical Parameter

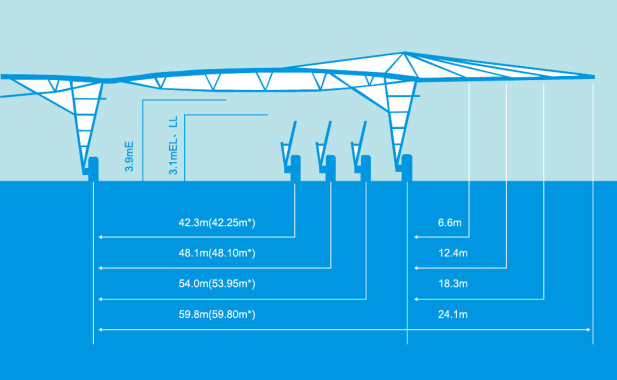

Equipment size
Four-corner control system A sprinkler can be hung on the end of overhang, adding irrigation area of corners
Key capabilities
- Irrigation circle Ø up to 1,800 m
- Designed for large-scale farms; durable structure and easy
operation
- Configurable to local soil, terrain and climate conditions
Engineering highlights
- Slope capability up to 15%
- High-torque gear motors with thermal overload
protection
- Multiple pipe diameters and span configurations
available
pivot tower
The pivot is supported by four 80mmx80mm solid angel steel legs which are connected by cross bars to ensure structural strength and stability of the system. The whole pivot support frame is hot dip galvanized and double lip seal to prevent leaking.
Gear motors
High-torque motor with thermal overload protection Enclosed moisture-proof motor High-efficiency spur gear shaft seal with specific dirt-repellent profile Types: 40:1/(0 . 55kw; 0 . 75kw; 0 . 9kw; 1 . 1kw)
spans-Trussing
Even arc shape of the trussing ensures high degree of stability. Main tube of 4 diameters can meet need of a wide flow rate range (50-500cum/h) and optimizes the operating cost. standard tube length (5 . 85m) facilitates transportation and assembly. unified truss rod design makes it adaptable for all models of machines and the high tensile truss rod (diameter 20mm) ensures a higher safety guarantee for the whole system.

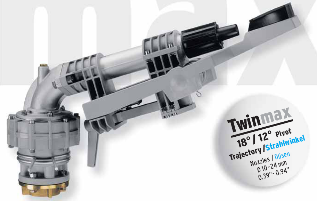

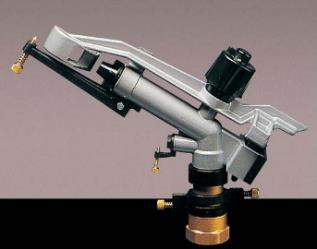

Sprinkler
Austrian KOMET wide-range sprinklers is used for large machines, and Italian SIME sprinklers is used for medium and small reel machines.
Austrian KOMET-KPT rotary sprinkler is standard, and American NELSON-D3000 and R3000 sprinklers are optional.

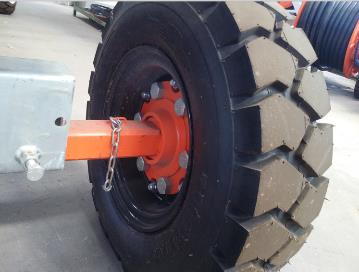

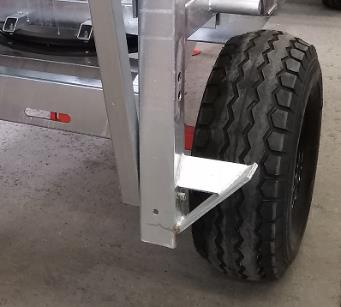

Tire
Preferred suppliers, strict testing, tires with different grip performance can be selected according to special soil quality.

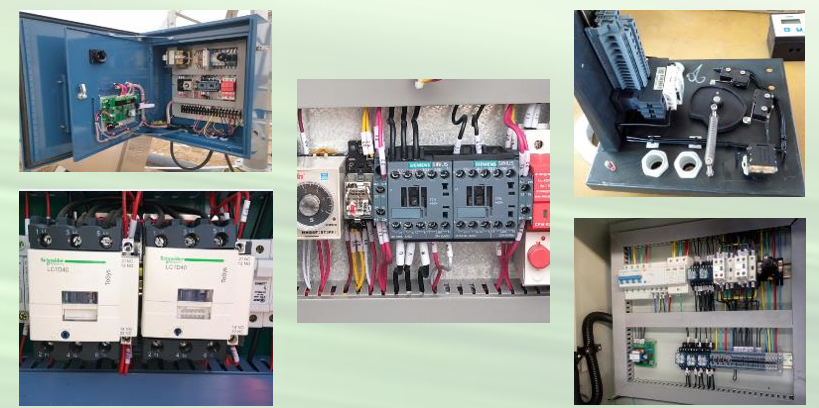

Electrical components
Schneide, Phoenix, OMRON and other products are adopted for the main electrical components, and the system is precisely controlled. Honeywell electrical devices are used. High-quality electrical components ensure reliable operation of the equipment for a long time.

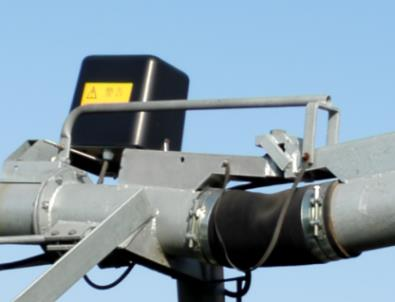

Truss connection
Independent universal joint, including ball joint and ball socket, flexible connection The connecting rubber hose between spans is made of high-quality rubber, specially customized, with anti-aging and anti-corrosion performance, pressure resistance greater than 0.6MPa, bursting pressure greater than 1.8MPa, and outdoor operating temperature of -40 ℃ ~ + 50 ℃.
Sprinkler connection hose
Preferred suppliers, strict testing, tires with different grip performance can be selected according to special soil quality.

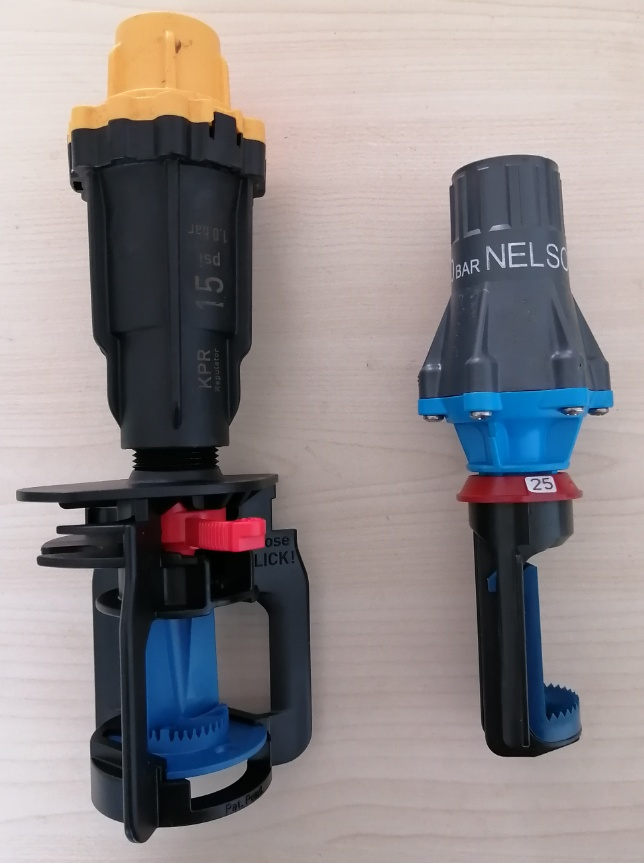

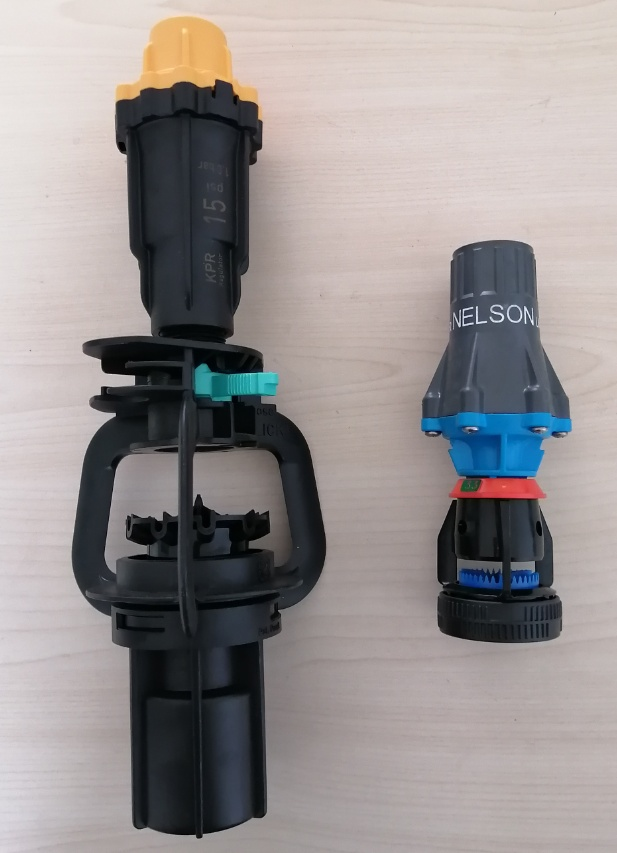

Spray Nozzles
Standard configuration: Austrian KOMET-KPT rotary spray nozzles; optional: American NELSON-D3000 and R3000 spray nozzles

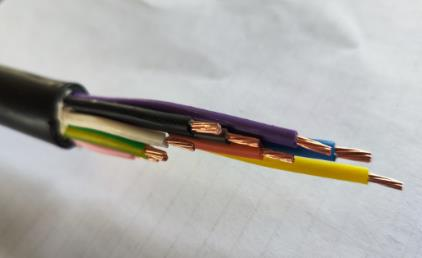

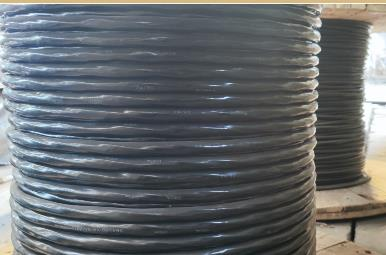

Main cable of Pivot & Linear(Large-scale irrigators)
Five sizes of 10-core main cables for equipment of different lengths and power. Adopt cross-linked polyethylene insulation polyethylene sheath, anti-aging, anti-ultraviolet, wear-resistant. Operating temperature: -20 ℃ ~ + 55 ℃, storage temperature: -50 ℃ ~ + 70 ℃

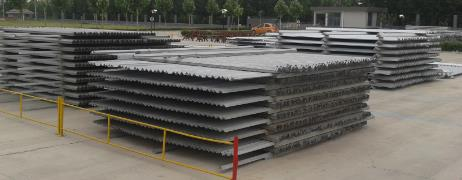

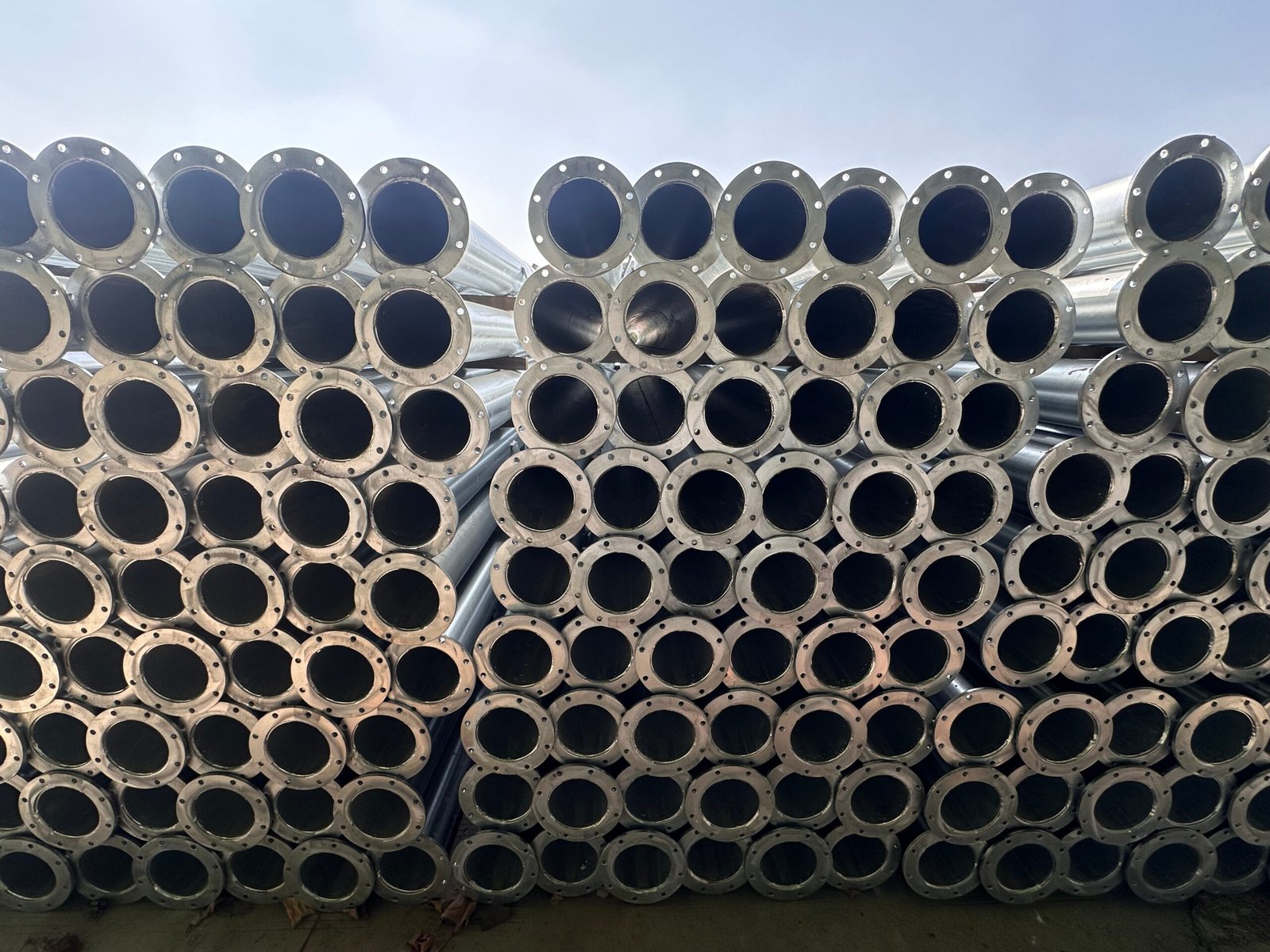

Steel
It is selected from domestic famous steel factories, with stable material and reliable performance. All raw materials are checked and accepted higher than the national standard, which ensures the stability and service life of the whole machine.
