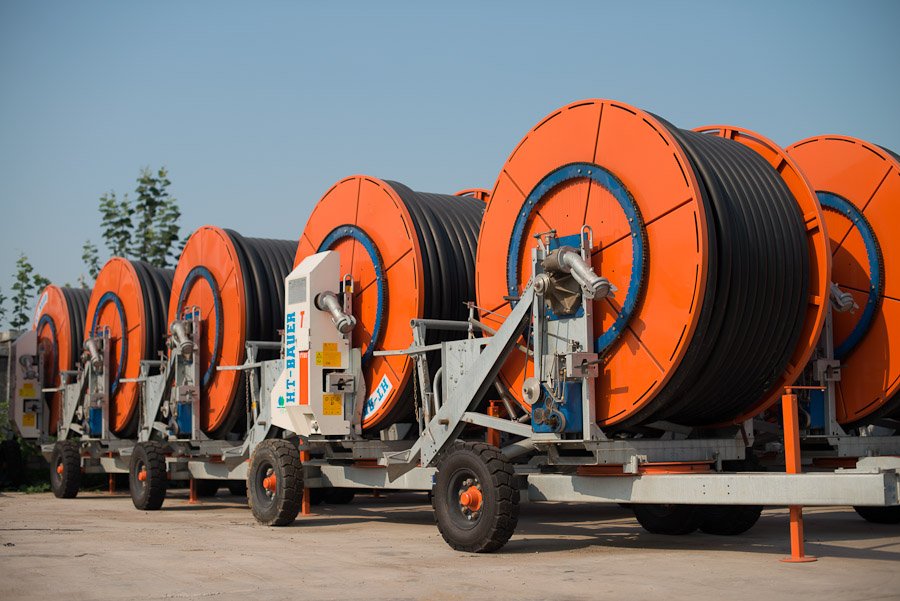

Aquajet Series Hose Reel Irrigators
Reliable, Durable, and Time-Tested Mobile Irrigation
A cost-effective and robust solution designed for stable, fully automated irrigation across diverse terrains.
The Aquajet Series is a classic mobile sprinkler system driven by high-efficiency water turbines, offering a water-saving rate of over 75% while significantly increasing crop yields. Engineered for simplicity and longevity, this series is the ideal choice for farmers who require a dependable, easy-to-operate system with a proven track record.
Model: 65, 75, 85, 90
PE pipe diameter: 65-100mm
PE pipe length: 200-450m
Irrigation area: 6-26 ha
Flow: 11-65m3/H
Specifications

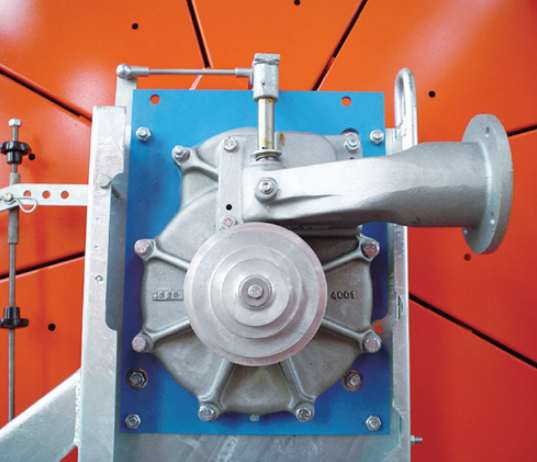

TX20 Water Turbine
An energy-saving, axial-flow design with unusually low pressure loss. It is installed directly on the reel shaft to reduce energy consumption and provide strong recycling power even at low flow rates.

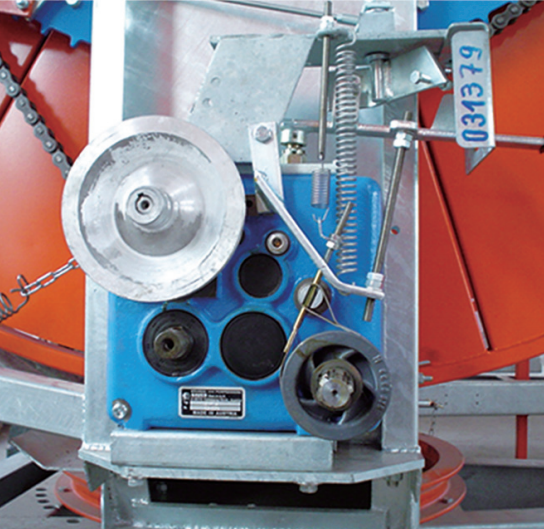

Dual-Speed Transmission
The BAUER dual-speed gearbox provides simplified operation and precise coordination, achieving true intelligent and automated control.
Accurate Chain Drive
Precision sprockets and high-strength drive chains ensure stable operation and low maintenance, even under heavy working loads.
Safe Recycling System
The system ensures a constant recycling speed and automatically arranges the PE pipe neatly during recovery. It automatically stops upon completion or in the event of a pipe failure.
LCD Velocimeter
A modern liquid crystal display quickly calculates and shows the rewinding speed, allowing for convenient adjustments to maintain stable irrigation.

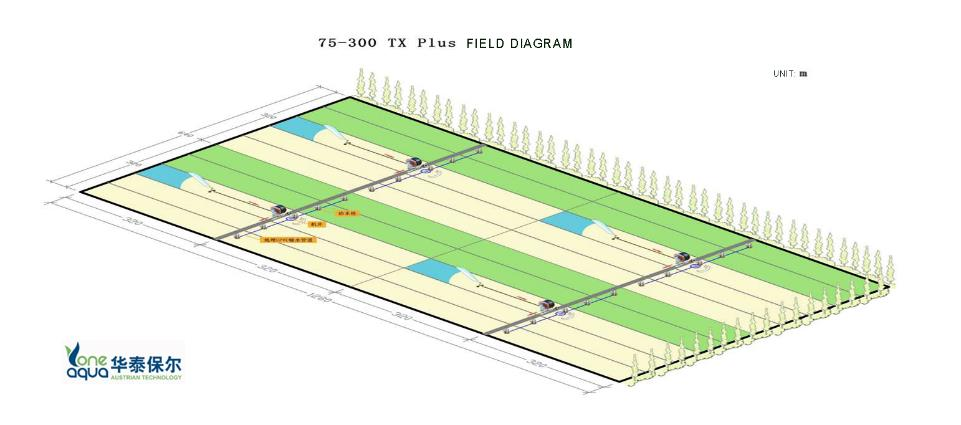

Operation mode:
The sprinkler is fixed in the middle of the field or the strip field.
1.3-2.8 m working channel shall be reserved, and the working channel shall be consistent with the planting direction of crops.
Carry out sprinkling along the direction of crops planting.
Versatile Spraying Options
Twin Large Spray Guns: Equipped with KOMET Twin SR101/140 guns. These provide long-distance spraying (35–50 meters) and high uniformity without manual intervention.
Cantilever Truss Systems: For delicate crops, the low-pressure cantilever protects both the soil and the plant, controlling a bandwidth of up to 34 meters.
Crop Balance Protection: Even on uneven surfaces, the balance mechanism automatically adjusts to ensure the correct irrigation angle, protecting your crops.
